15 Inches Color Doppler Ultrasound Scanner Machine High Resolution LCD Screen

Brand Name : BIO

Model Number : 5000E

Place of Origin : China

MOQ : 1 unit

Payment Terms : Credit card, Paypal, T/T

Supply Ability : 100 units / month

Delivery Time : 7 working days after full payment

Packaging Details : 1 unit / carton

Modes : B,M,2B,B/M,4B,C,PW, Power,DirPower,THI

Gray level : 256

Display : 15” LCD monitor

Transducer Frequency : 2-12Mhz

Scanning Depth : ≥300mm

Dynamic range : 0~120dB adjustable

Probe connector : 2

Probe holder : 2

USB Port : 2

Disk capacity : ≥160G

Contact Now

Color Doppler Ultrasound Machine with 15 Inches High Resolution LCD Screen Laptop Model

Specially, with its small size and design, 5000E is easy to transport, expanding its applications to more areas, such as ambulances, gymnasiums and operating theatres, as well as in the field.
5000E helps doctors to scan at wherever and whenever benefit from its quick start, long standby batteries and various kinds of probes.
Build-in patient’s data management system let patient’s diagnostic data can be storge easily, fast review quickly and manage efficiently. By connecting to printers, diagnostic report will be print out directly.
Moreover, the 5000E system gives users plug-and-play connectivity and seamless network to upgrade system and output data. E.g. DICOM, USB ports, DVD recorder, Internet access port.

Measurement and calculation

B mode	Distance, angle, area, volume, trace length, length ratio, area ratio, histogram
M mode	Distance, time, slope, heart rate
Color and PW mode	D velocity, D trace, PS/ED
Application package	Abdomen, gynecology, obstetrics, superficial organ, urologist, heart and user defined model 1-4, total ten models;

Technical Specifications

Monitor	15' HD LED monitor
Probe connector	2
Probe holder	2
USB Port	2
Scanning mode	Convex,Trans-vaginal, high-frequency linear array,Micro-convex;4D array
Modes	B,B/B,B/M,CFM,CFM/B,PDI,PDI/B,PW.CW
B/D dual-purpose	linear array: B/PWD
B/D dual-purpose	convex array: B/PWD
B/D/PW	real-time Triple
Languages	5
Gray scale	256 levels
Depth display	≥300mm
Dynamic range	0~120dB adjustable
One-click optimization function	Available
Self-motion optimize function	Available
Image multiplying factor	Available
Image mode	digital beam forming, tissue harmonic imaging
Picture function	picture zoom in and zoom par
Disk capacity	≥160G
Frequency conversion	2MHz-12MHz(Depending on the probe)
Pseudo color encoding	16 kinds optional.
E-zoom	magnify 2 times of real time image
Focus position	dynamic electron focusing
Application Mode	Abdomen, gynecology, obstetrics, superficial organ, urologist, heart and user defined model 1-4, total ten models;
Output Interface	USB. VIDEO .DICOME.FOOT SW.
Output Interface	USB Port:Our machine can connect the common printer . Used to print the measurement report page.
Optional Probe	Convex,linear,Trans-vaginal,Micro-convex,4D probe,Phased probe

Multiple Frequency Probes

3.5 MHz Convex probe(R60)		Abdomen, GYN and OB
7.5 MHz Linear array probe(L40)		Vascular,Small Parts
6.5 MHz Transvaginal probe(R13)		Vagina
6.5 MHz micro-convex probe(R15)		Cardiac

Standard Configurations

main unit

15 inch high resolution LCD display :1024*768

Two USB ports

One s-video out port

One HDMI port

One power inlet

3.5 MHz convex probe

Three transducer connectors

Abundant measurement&calculation software package.

Optional

7.5 MHz Linear array probe

6.5 MHz Transvaginal probe

6.5 MHz Micro convex probe

Lithium battery

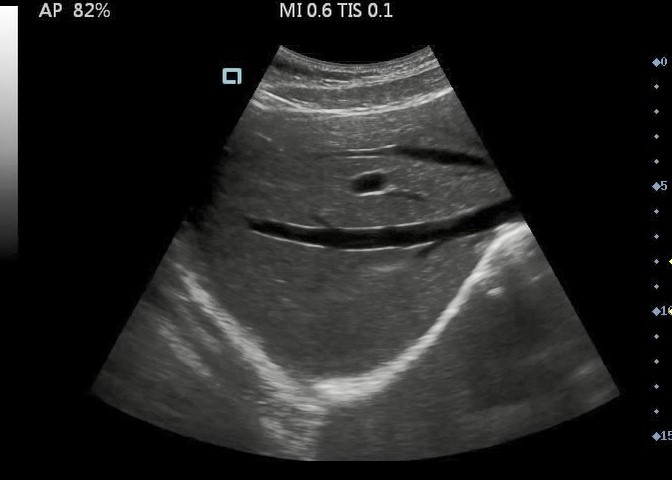

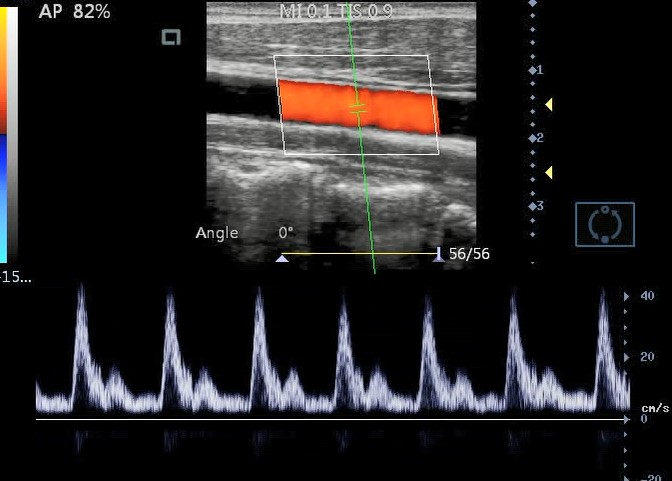

Our images

15 Inches Color Doppler Ultrasound Scanner Machine High Resolution LCD Screen
